A cabin air filter is a critical automotive component designed to purify the air entering the vehicle's interior through the HVAC (Heating, Ventilation, and Air Conditioning) system.

1. Unpleasant Odors: Mold and trapped particles generate a noticeable smell inside the cabin.
2. Reduced Air Quality: A clogged filter loses its filtration efficiency,allowing pollutants into the vehicle and negatively impacting the health ofthe occupants.

Comparative Analysis: DIY Replacement vs. Dealership Service

Replacing a cabin air filter does not require specialized mechanical skills.Here is a comparison of replacement methods:

1. Auto Repair Shop / 4S Dealership: Requires scheduling, travel time, and incurs additional labor costs on top of the parts markup.
2. DIY (Do-It-Yourself) Replacement: Takes only a few minutes, requires zero specialized tools, and costs only the price of the filter itself.

Standard Replacement Procedure (Step-by-Step)

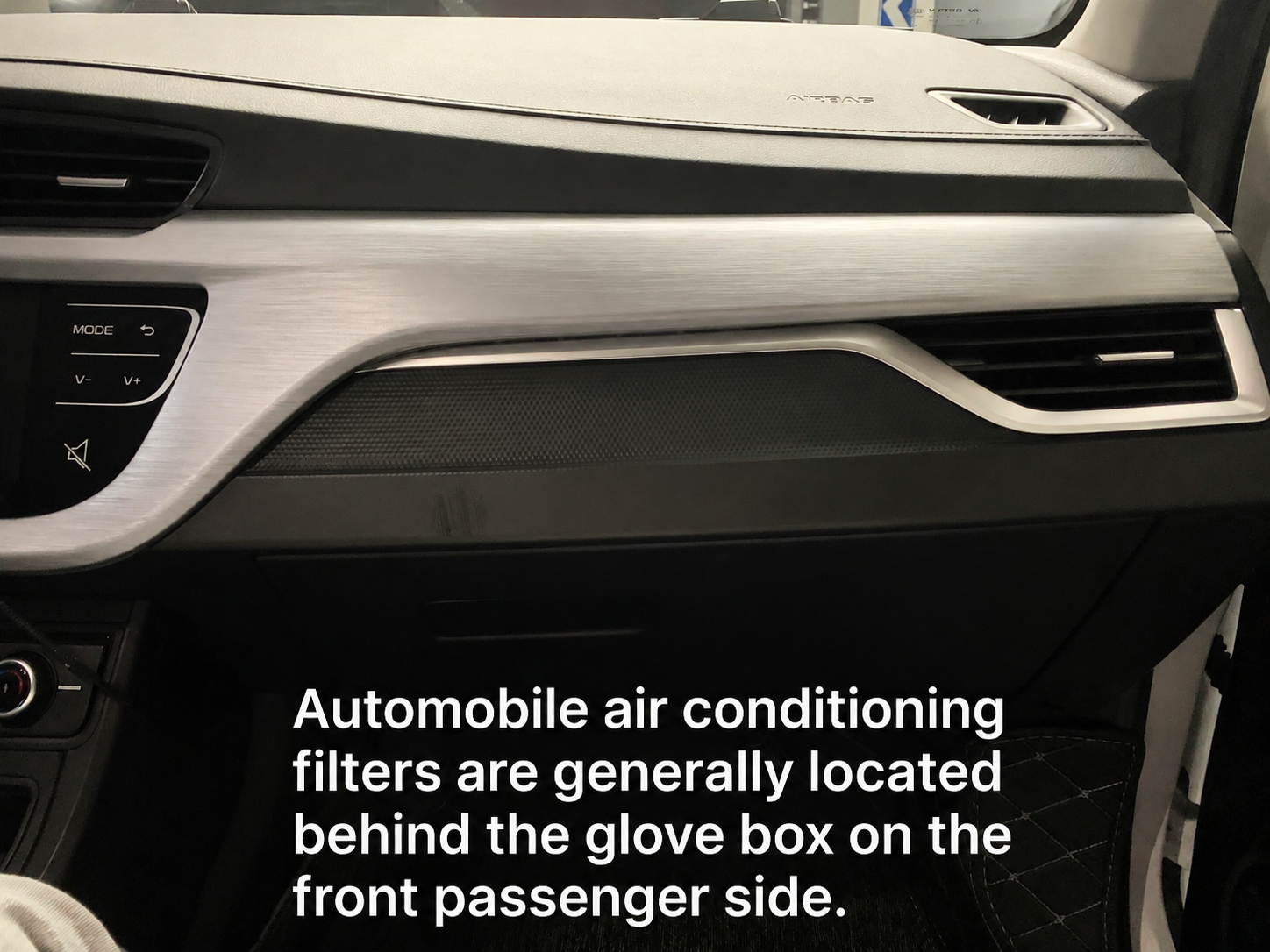

The cabin air filter is typically located behind the passenger-side glove box.Depending on the vehicle model, full removal of the glove box may or may not be required. Follow this standard operational procedure:

Step 1: Access the Glove Box Compartment: Open the passenger glove box. Assess if there is enough operational space. If space is sufficient, proceed to Step 2. If the space is too tight, remove the glove box by locating the two plastic pins atthe bottom left and right sides. Pinch the pins with your fingers and pull them out firmly to detach the glove box.

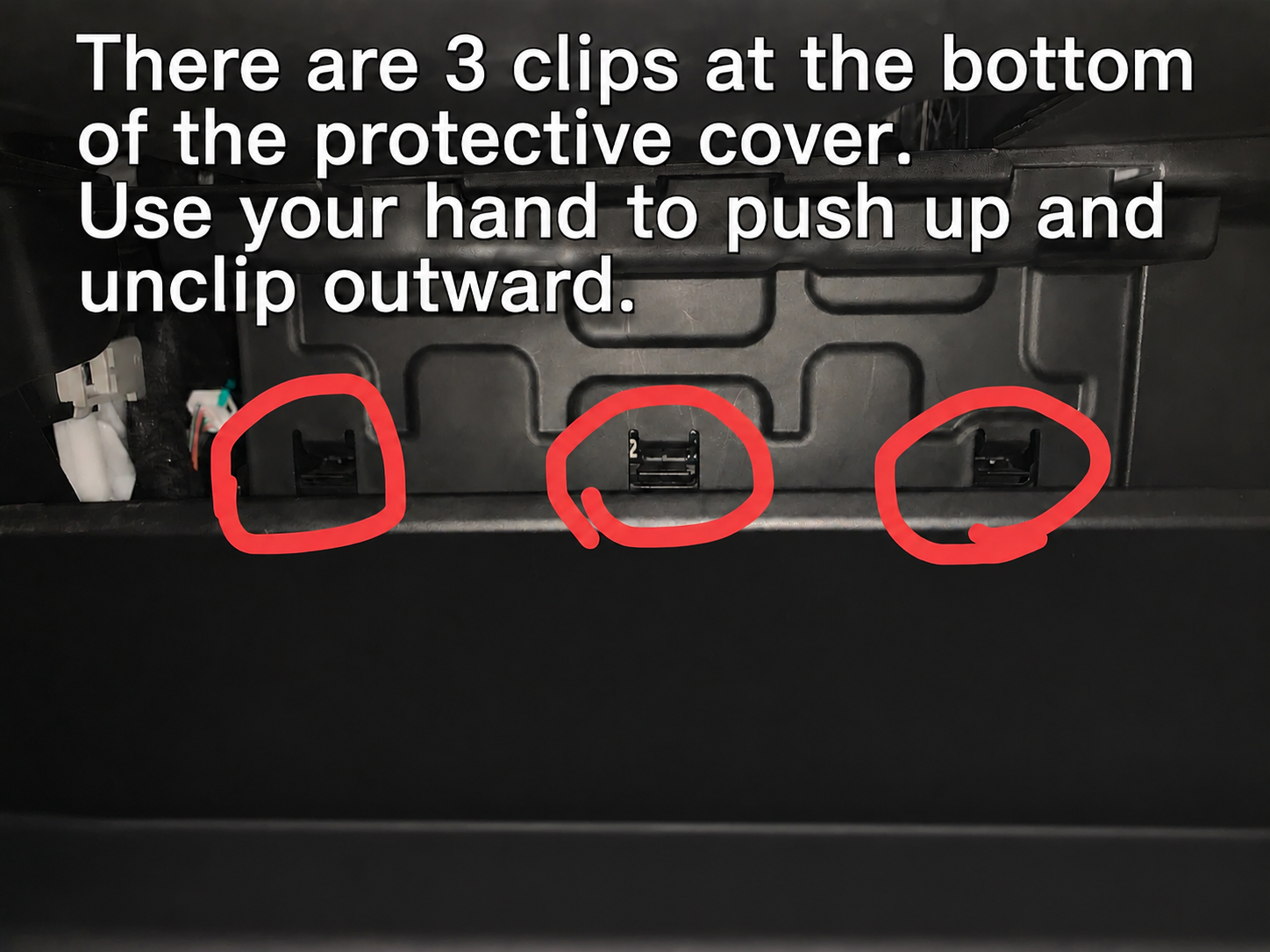

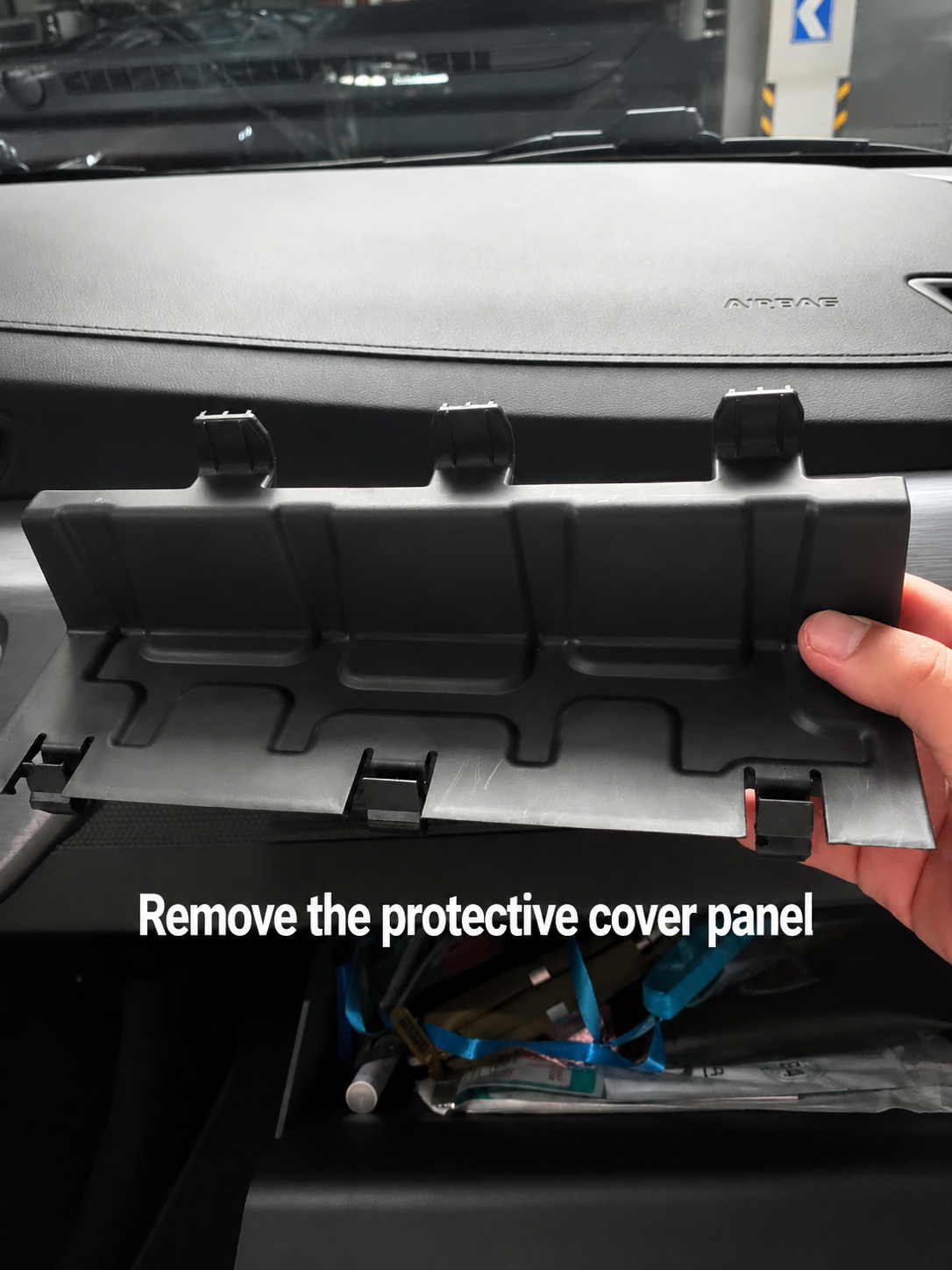

Step 2: Remove the Primary Protective Cover: Locate the first protective cover plate behind the glove box area. Identify the three retention clips at the bottom of the plate. Push the clips upward and pull outward to detach this cover.

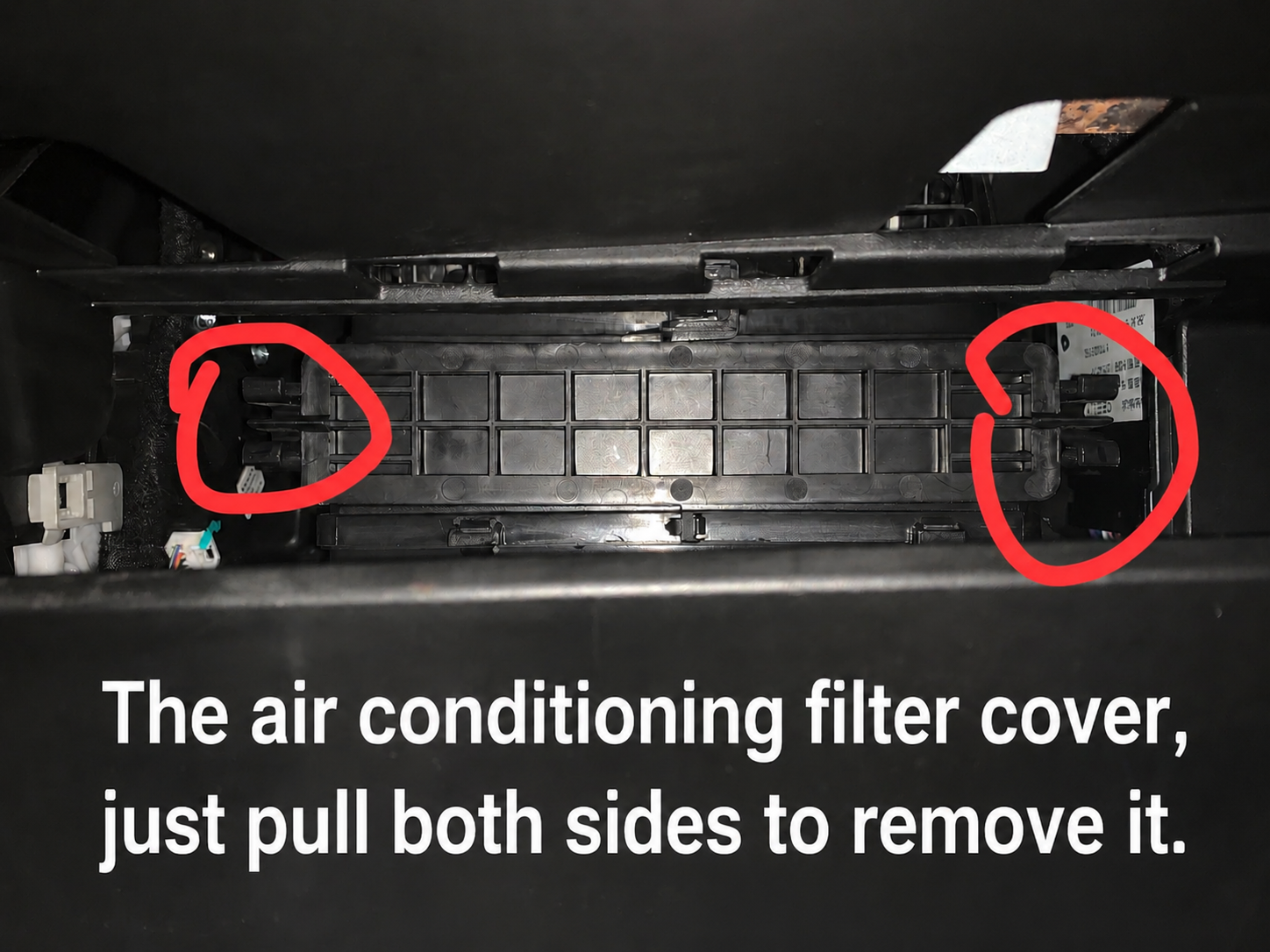

Step 3: Remove the Inner Filter Cover: Behind the primary cover is a secondary cover specifically housing the filter. Locate the clips on the left and rightsides of this inner cover. Pinch both clips simultaneously and pull backward to remove it.

Step 4: Extract the Old Filter: Identify the small handle strap or tab on the exposed filter. Pull the strap gently toward you to slide the old filter out of the housing.

Crucial Installation Guidelines and Warnings

When installing the new filter, strictly adhere to the following technical precautions to ensure proper system function:

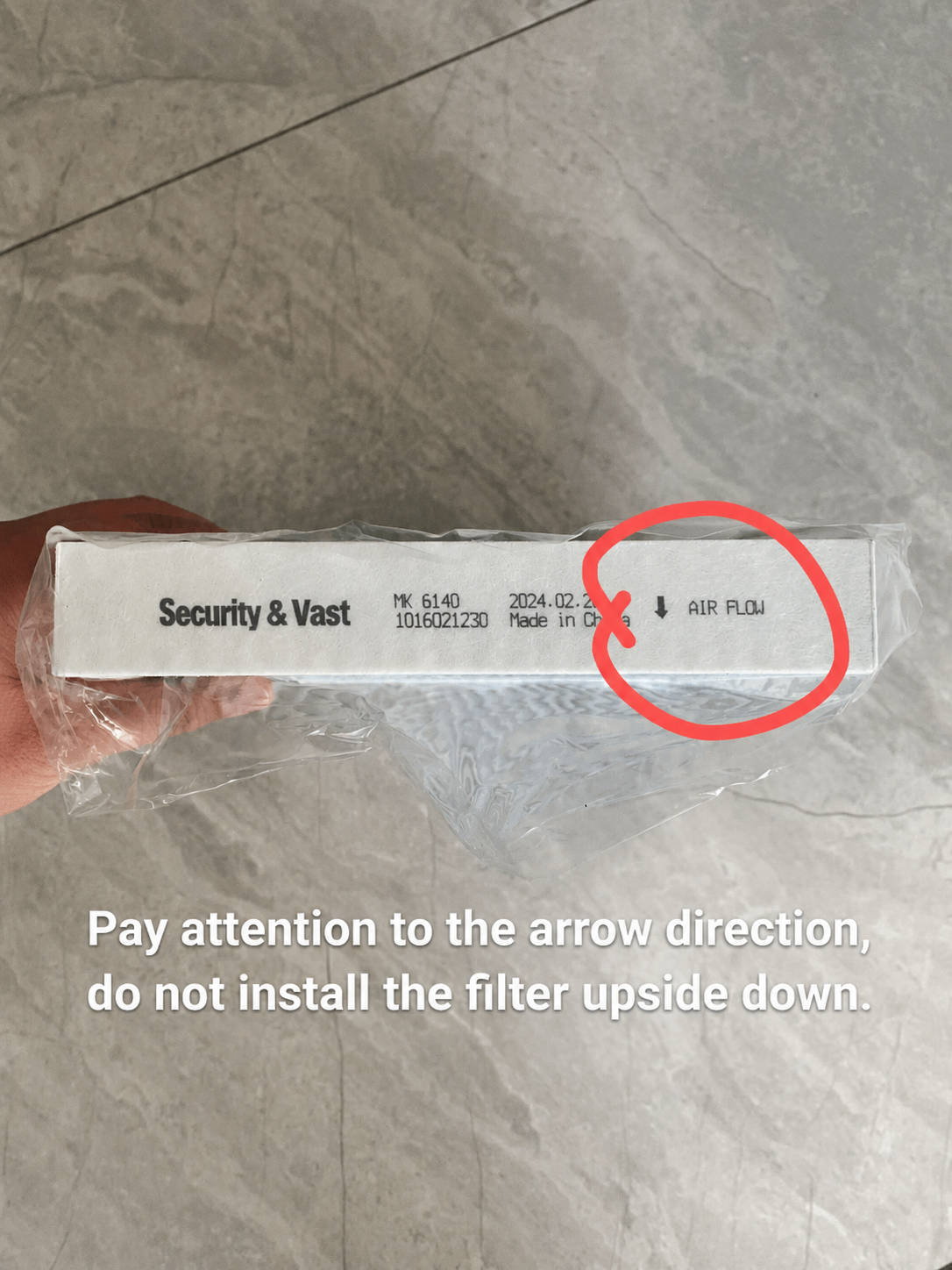

1. Air Flow Direction Verification (Critical): Do not install the filter backwards. Examine the side of the old filter and the new filter for an orientation indicator, typically marked as "↓ AIR FLOW". The arrow must point in the correct direction (usually downwards, matching the vehicle's airflow design). Reversing the installation will severely compromise filtration effectiveness and restrict HVAC airflow.
2. Component Handling: When removing the plastic cover plates and clips,maintain a firm grip to prevent them from dropping into the internal dashboard cavity, which can make retrieval difficult.

Once the new filter is correctly oriented and inserted, snap the inner filter cover and the primary protective cover back into place. Reattach the glove box(if removed) to complete the process.
